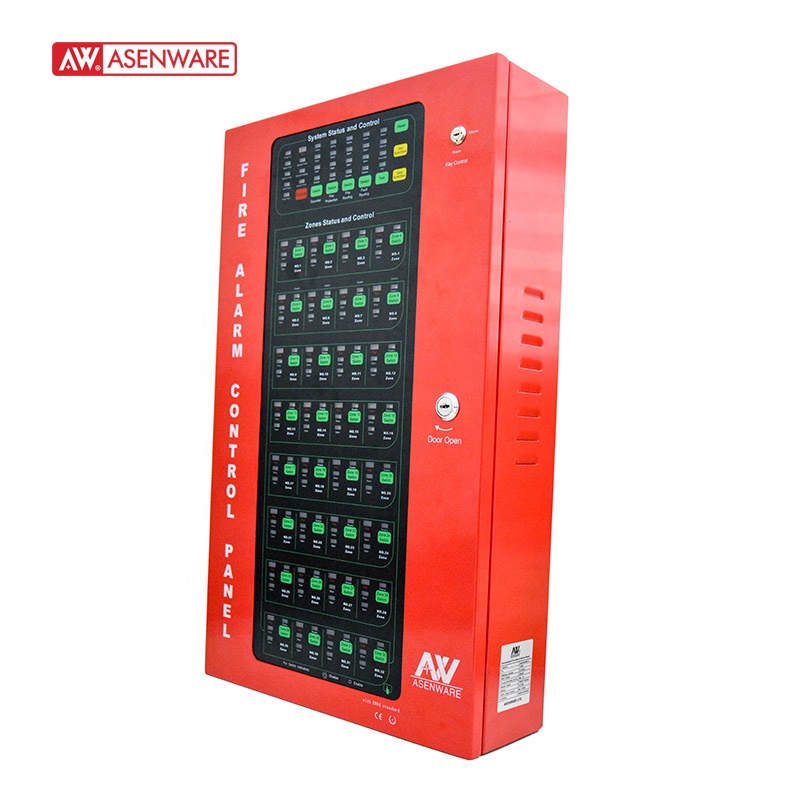

16 zones fire alarm panel
16 zones fire alarm panel AW-CFP2166 series conventional fire alarm panel is designed based on EN54 part 2&4 standard. And it is the central part of conventional fire alarm system, designed for applications requiring smoke detector, bell, manual pull stations, and sprinkler supervision.
n
nAW-FTP2016 (16 zones) fire telephone panel is a new fire special communications equipment, when the fire accident, which provides a convenient means of communication, the fire control and alarm systems necessary communications products. Wall-mounted structure is easy to install, suitable for small systems.
SKU: 16 zone alarm panel
Nationwide
Delivery
Cash / M-Pesa
on Delivery
1 Year
Warranty
Expert Support
Mon-Sat
16 zones fire alarm panel Control Systems
n
Introductions:
n1. AW-CFP2166-2 conventional fire alarm panel is designed based on EN54 part 2 & 4 standard.
n2. Adopted modularized design, flexible extendable capacity.
n3. Two-level control mode by a lock
n4.27VDC power supply output.
n5. FIRE PROTECTION, FIRE ROUTING and FAULT signal output, the output can be configured to dry relay type or wet sources type.
n6.2 channel general sounders output.
n7. Each zone has 1 circuit detectors input.
n8. Each zone can be disable by a button.
n9. It has RESET button to reset the panel.
n10. SILENCE button to stop BUZZER and SOUNDERS.
n11. EVACUATE button to start a manual fire alarm immediately.
n12. TEST button to test all LEDs orderly.
n13. Low-battery protection function, when battery voltage lower than 21VDC, battery will be cut off automatically until the mains power is on.
n14. Optional GSM module is available for fire alarm by SMS.
n
Asenware, professional fire alarm solution provider.
