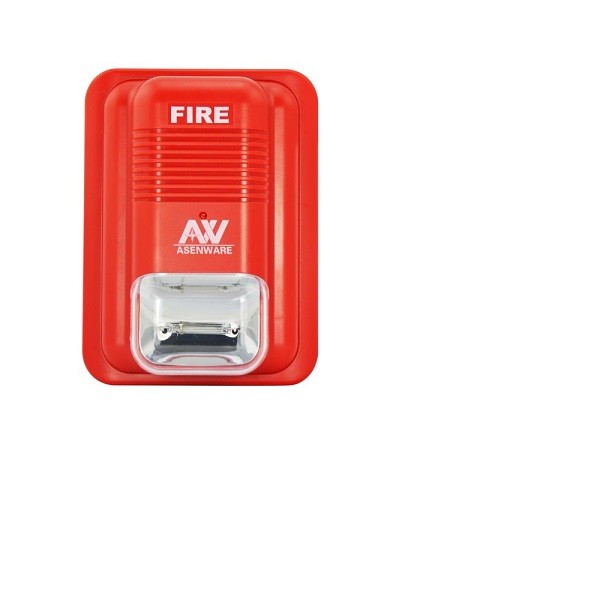

addressable strobe sounder aw-d106

addressable strobe sounder aw-d106 key features & specifications
n

n
• Audible & Visual Alarms: Combines a high-decibel sounder with a bright strobe light for comprehensive fire notification.

n

• Addressable Communication: Connects to an Asenware AW-FP100 series addressable fire alarm control panel using a specific ID for continuous monitoring and precise location identification.

n

• Low Standby Current: Designed for energy efficiency with a low current draw when not in an alarm state.

n

• Fast Alerting: Features a 1-second flash period to ensure rapid visual notification.

n

• Application: Suitable for indoor use in buildings like offices, shopping centers, educational institutions, and residential towers.

n

• Operating Conditions: Operates within a temperature range of -10 to 50°C (14~122°F) and 5-95% humidity.

n

n

n

n
1. Addressable System: The AW-D106 is assigned a unique address by the Asenware AW-FP100 fire alarm panel.

n

2. Alarm Activation: When a fire is detected, the panel activates the specific device.

n

3. Simultaneous Alert: The AW-D106 then produces both an loud audible sound and a bright, flashing light to signal the fire.

n

4. Loop communication: It operates on a two-bus system, receiving power and data and transmitting information through the loop wiring, allowing it to function as a continuous loop device.
