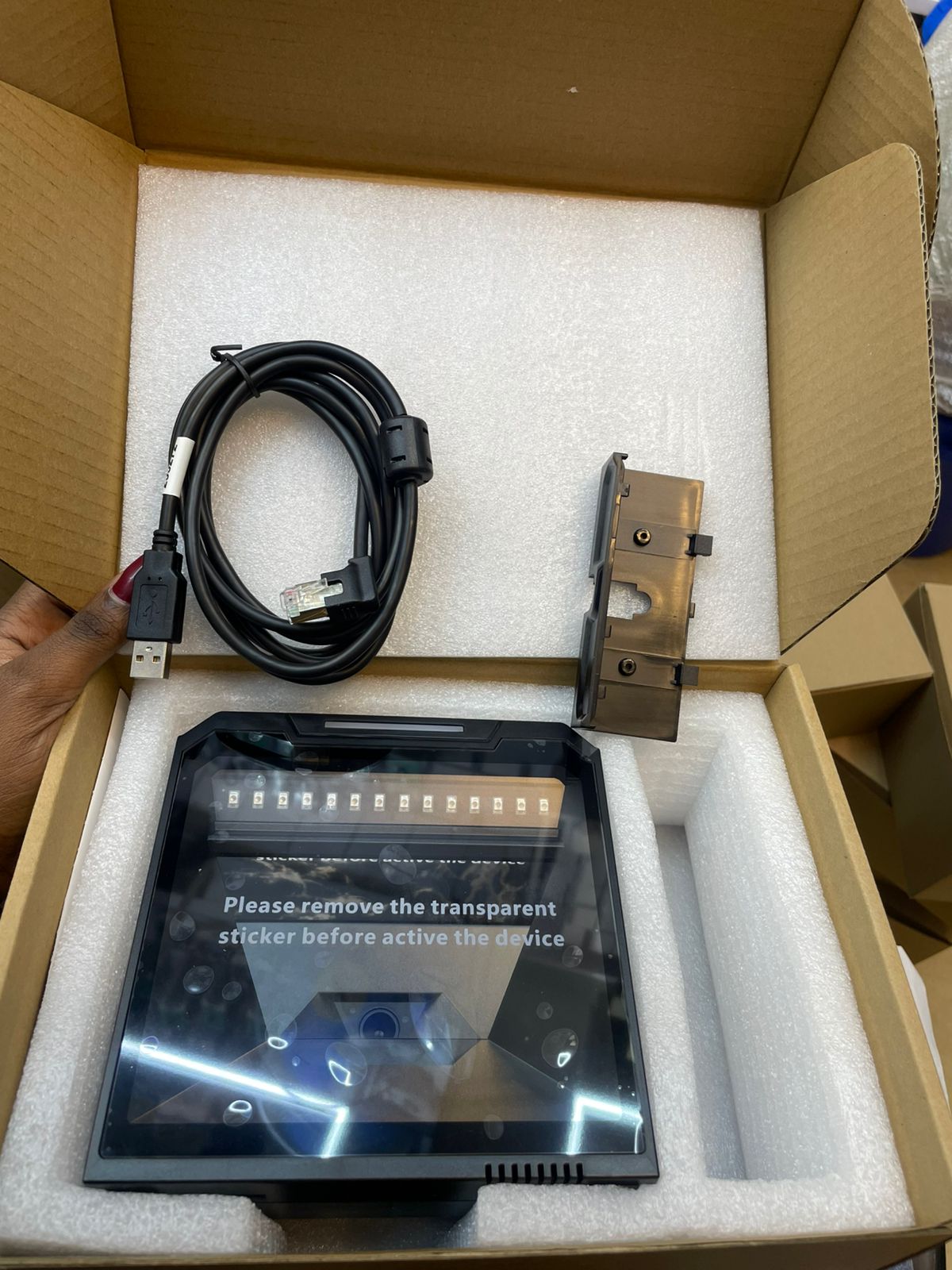

XB-8808G 2D Omni Desktop Barcode Scanner

XB-8808G 2D Omni Desktop Barcode Scanner  is a high-speed, hands-free imaging solution designed for high-volume retail and logistics environments. It features omnidirectional scanning, allowing it to capture 1D and 2D barcodes from any angle without needing precise alignment.
n

XB-8808G 2D Omni Desktop Barcode Scanner Key Features

n

n
• Omnidirectional Scanning: Reads barcodes from any angle instantly, eliminating the need to align products manually and speeding up checkout processes.

n

• Multi-Platform Reading: Equipped with an advanced CMOS imager, it decodes barcodes from paper labels, plastic cards, and digital screens such as smartphones and tablets.

n

• Hands-Free Operation: Features an automatic sensing mode that triggers the scan as soon as a barcode is presented, allowing for continuous and efficient workflow.

n

• High Performance on Low-Quality Codes: Successfully decodes blurred, damaged, smudged, or low-contrast barcodes.

n

• Plug-and-Play Setup: Uses a drive-free USB interface for immediate integration with Windows, Mac, Linux, and Android systems.

n

• Durable Build: Constructed with ABS+PC materials and an IP54 rating for dust and water resistance, it is designed to withstand multiple 1.5-meter drops to concrete.

n

n

Technical Specifications

n

n

n
• Scan Engine: 1.3-megapixel CMOS imaging technology.

n

• Scan Speed: Up to 300 scans per second (or 60 images per second for 2D).

n

• Resolution: 640 x 480 pixels with a minimum recognition accuracy of 4 mil for Code 39.

n

• Motion Tolerance: High tolerance of 3.8 meters per second, ideal for items passed quickly across the scanner.

n

• Supported Symbologies:
  n
  n
  • 1D: EAN-8, EAN-13, UPC-A, UPC-E, Code 39, Code 128, Codabar, etc.

  n

  • 2D: QR Code, Data Matrix, PDF417, Aztec, MicroQR.

  n

  n

n

• Interfaces: USB (HID/COM), RS232.

n

• Dimensions: 152mm x 82mm x 152mm.

n

• Weight: Approximately 497g to 500g.

n

• Environmental: Operating temperature from -22degrees Celsius to 55 degrees Celsius
