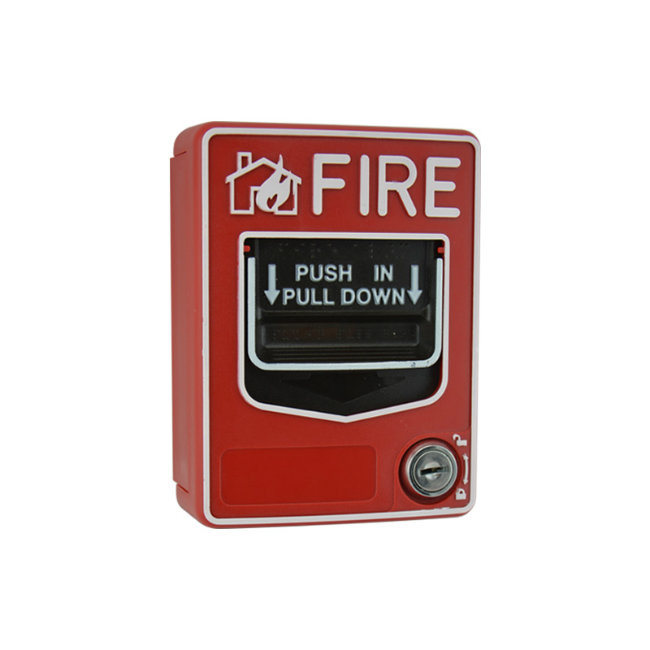

Asenware conventional manual push station

Asenware conventional manual push station  (such as models AW-D135Cand AW-CMC2166-6)are fire alarm initiation devices used for triggering emergencies. Featuring a durable red ABS plastic housing, they operate on a two-wire DC24V system, suitable for surface/flush mounting. These resettable units feature an LED indicator for status and comply with EN54-11 standards
n

Asenware conventional manual push station Key Features

n

n
• Activation: PUSH IN/PULL DOWN handle, with a key-activated reset functionality, eliminating the need to break glass.

n

• Status Indicators: LED flashes green/red (depending on model) during normal operation and remains steady during an alarm.

n

• Compatibility: Designed for use with conventional fire alarm control panels via a two-wire loop.

n

• Installation: Suitable for indoor use, designed for surface or flush mounting

n

n

Technical Specifications (Typical of AW-D135C/AW-CMC2166-6)

n

n
• Operating Voltage: 24V DC (16V to 28V DC).

n

• Standby Current:  60uA (Typical).

n

• Alarm Current: 10mA to 30mA.

n

• Material: ABS Plastic (Red).

n

• Operating Temperature:  to  (14°F to 131°F).

n

• Dimensions: Approximately  (square design).

n

• Weight: ~95g.

n

• Compliance: EN54-11
