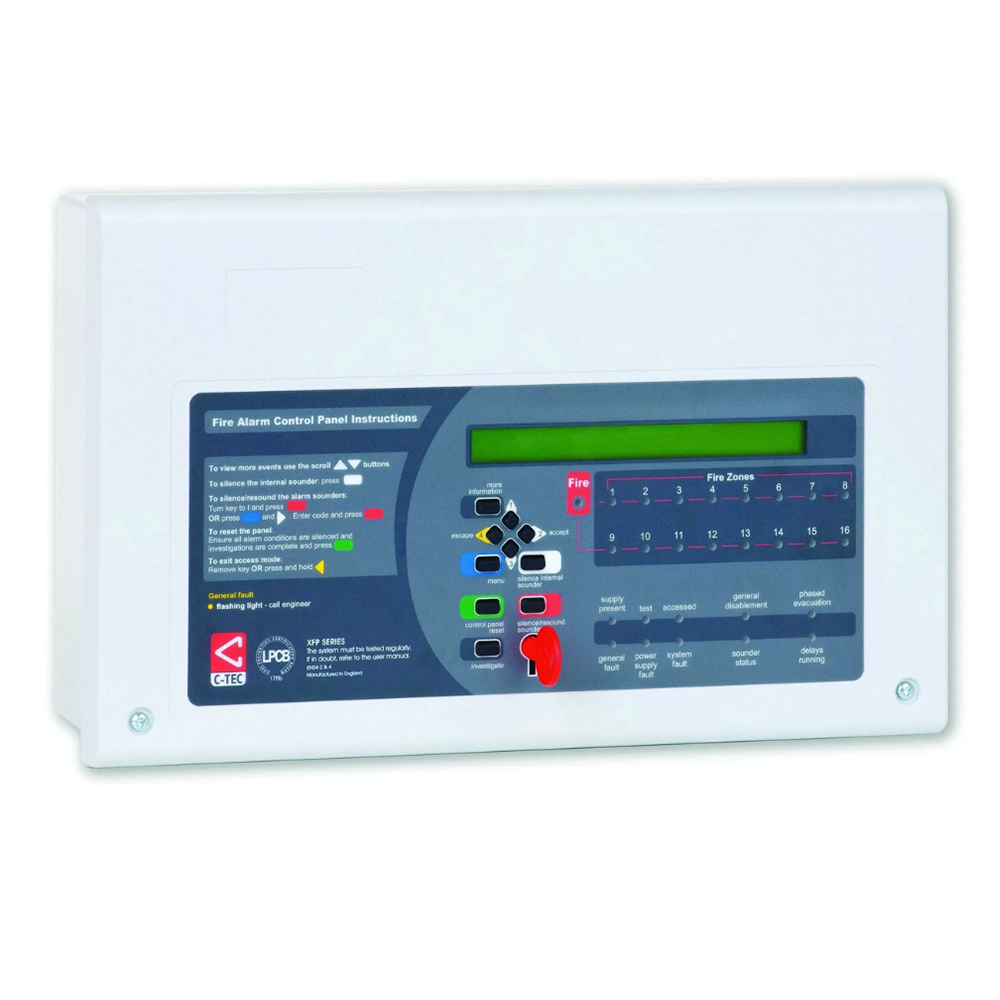

C-TEC XFP 1 Loop 16 Zone Addressable Fire Alarm Panel

C-TEC XFP 1 Loop 16 Zone Addressable Fire Alarm Panel core features
n

n
• Single loop, 16 zone panel: Detects and identifies the specific location of a fire, unlike a zone-based system.

n

• LPCB certified: Meets European standards for fire detection and alarm systems (EN54 Parts 2 & 4).

n

• Protocol compatibility: Works with Apollo’s XP95/Discovery protocol, C-TEC’s CAST protocol, and Hochiki’s ESP protocol.

n

• Networkable: Can be networked with up to eight other XFP panels or eight repeaters for use in larger buildings.

n

• Device capacity: Supports up to 255 addressable devices per loop when using the CAST protocol.

n

• User interface: Includes a backlit 2-line, 40-character display and keypad/keyswitch access to higher levels.

n

n

C-TEC XFP 1 Loop 16 Zone Addressable Fire Alarm Panel Additional capabilities

n

n
• Programmable functions: Includes two programmable inputs, three programmable relay outputs, and two independently programmable conventional sounder circuits.

n

• Fault reporting: Features a fault output relay and advanced earth fault monitoring.

n

• Advanced logic: Offers functions such as phased evacuation, day/night mode, and an investigation delay period.

n

• Event logging: Records up to 999 events.

n

• PC software: Comes with an intuitive Windows-based upload/download PC program for easier configuration
