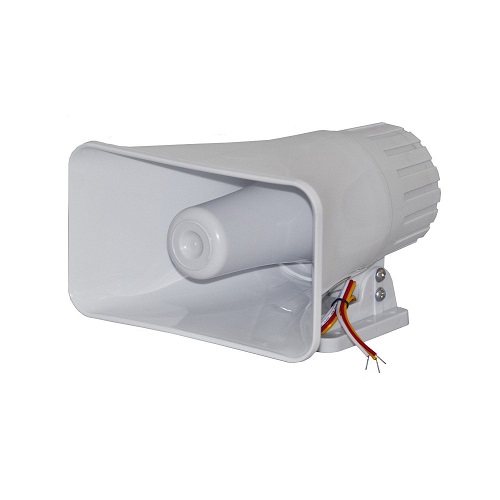

siren horn 30watt

siren horn 30watt is a powerful, compact alarm speaker for security systems, producing extremely loud, dual-tone (warble/steady) alerts (around 120-130dB) from a low-voltage DC power source (like 12V). Built tough with weatherproof ABS plastic, it’s designed for indoor/outdoor use, easily connecting to alarm hosts to scare intruders or signal emergencies in homes, businesses, or vehicles, with features like adjustable brackets for directional sound.
n

siren horn 30watt key Features & Specifications:

n

n
• Power: 30 Watts.

n

• Loudness: Very high output, typically 120dB to 130dB, loud enough to cut through noise.

n

• Voltage: Usually 6-12V DC, making it compatible with standard security systems and car batteries.

n

• Sound Modes: Offers dual tones, often a “warble” (changing pitch) and a “steady” (constant) tone, selectable by wiring.

n

• Durability: Made from robust, weatherproof ABS plastic for indoor and outdoor resilience.

n

• Connectivity: Connects to alarm panels, fire alarms, or vehicle systems.

n

• Installation: Compact design with an adjustable bracket for optimal sound direction, often mounted on walls or rooftops.

n

• Purpose: Used for intrusion alerts, fire alarms, panic buttons, and vehicle anti-thef

n

n
n

Basic Installation Guide for siren horn 30watt

n

n

n
1. Choose a Location: Mount the siren as high as possible (e.g., under an eve or top of a stairwell) to keep it out of reach of intruders and ensure the sound isn’t muffled.

n

2. Mount the Bracket: Use the included pivoting bracket as a template to mark and drill holes. Secure it to the wall using screws and wall plugs.

n

3. Wiring Connections:
   n
   n
   • Standard Wired: Most have three wires. Connect the White wire to Negative (-). For sound selection, connect the Red wire to Positive (+) for a “warble” tone or the Yellow wire to Positive (+) for a “steady” tone.

   n

   • To Alarm Panel: Route the cable to your alarm control panel. Connect the positive and negative leads to the “Bell” or “Siren” output terminals.

   n

   n

n

4. Seal and Test: Tighten the pivot screw on the bracket to aim the horn. Use your alarm keypad or a temporary 12V battery to test the volume—wear ear protection as these reach up to 120–130dB.
