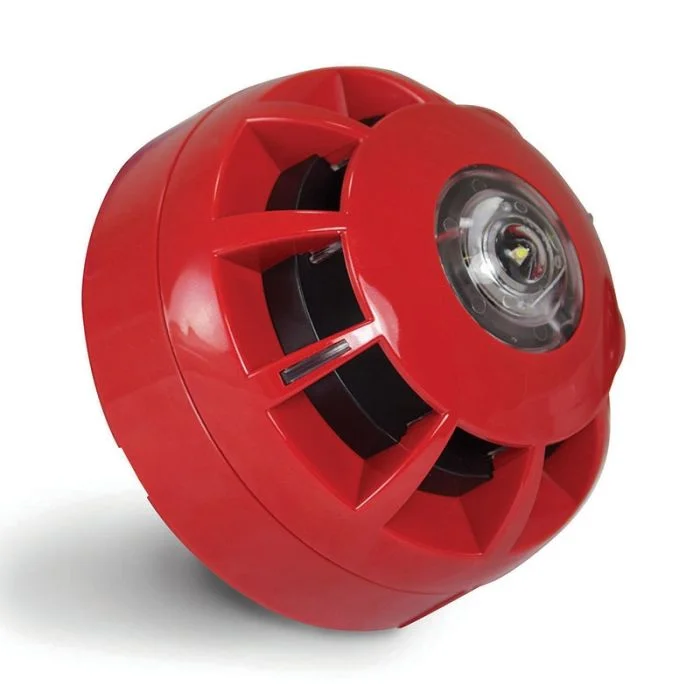

C-Tec addressable sounder/strobe

C-Tec addressable sounder/strobe
n

key features C-Tec addressable sounder/strobe

n

n
• Addressable technology: Each device has a unique address, allowing the central fire alarm panel to pinpoint the exact location of the alarm and control the device individually.

n

• Combined alerts: They provide both audible (sound) and visual (strobe) alerts to ensure everyone is notified.

n

• Programmable functions: Users can select from multiple tones and up to seven different volume levels to suit the environment.

n

• Synchronized operation: The flashing of multiple devices is synchronized to prevent confusion and ensure a clear, distinct alarm signal.

n

• Low power consumption: The devices are designed for low current draw, making them efficient for use on a fire alarm loop.

n

• Integrated isolator: Most models include a short-circuit loop isolator as a standard feature to prevent a fault in one device from affecting the entire loop.

n

• Third-party certified: Many C-Tec addressable sounder/strobes are certified to European standards, such as EN 54-3 (sounders), EN 54-23 (VADs), and EN 54-17 (isolators).

n

• Voice and tone options: Some models, like the CX voice sounder, can broadcast voice messages in addition to tones.

n

n
n

C-Tec addressable sounder/strobe Key specifications

n

n
• Sound Output

n

nUp to 96dB(A)96 d cap B open paren cap A close paren 96𝑑𝐵(𝐴)at 1 meter.
n

n
• Volume Control

n

n 7 selectable volume levels.
n

n
• Tone Selection

n

n Up to 15 selectable tone pairs.
n

n
• Visual Alarm Device (VAD)

n

nOften provides a flash rate of around 0.5Hz to 1Hz, and some models offer specific coverage areas like “C-3-8” (min.0.40.40.4
n
n lux over a 3 x 8m cylindrical area).
n

n
• Current Draw

n

nApproximately 550μA550 mu cap A550𝜇𝐴quiescent current and 14mA14 m cap A14𝑚𝐴alarm current @24V DC (for sounder + VAD).
n

n
• Loop Isolator

n

n Onboard short-circuit loop isolator included.
n

n
• Addressing

n

nGroup addressing and/or DIL switch addressing for multiple devices.
n

n
• Standards

n

n Third-party certified to EN54-3 (Sounders), EN54-23 (VADs), and EN54-17 (Isolators) by the LPCB.
n

n
• Operating Temperature:

n

n-10∘Cnegative 10 raised to the composed with power cap C−10∘𝐶to+55∘Cpositive 55 raised to the composed with power cap C+55∘𝐶
n
n.
n

n
• Ingress Protection (IP) Rating

n

nVaries by model, but examples include IP21C for some base units and IP43/IP65 for wall-mounted units.
